JUK 5-MTK P/P Rail Screw Clamp Terminal Block Knife Disconnect Low Voltage 800V/16A With Thin Structure

Name: JUK 5MTK PP Rail Screw Clamp Terminal Block Knife Disconnect Low Voltage 800V16A With Thin Structure
Brand: WONKEDQ
Price: 1 USD

Wholesale JUK 5-MTK P/P Rail Screw Clamp Terminal Block Knife Disconnect Low Voltage 800V/16A With Thin Structure from china suppliers

Brand Name : WONKEDQ

Model Number : JUK 5-MTK P/P

Certification : CE, RoHs, CQC,etc

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Type No. : JUK 5-MTK PP, Knife disconnect terminal block

Installation method : DIN Rail NS 35

Conductor material : Nickel plated brass conductor

Brands : WonkeDQ, customize other brands

Color : Grey, Blue, other color can be customized

Rated voltage/current : 800V/16A

Contact Now

JUK 5 MTK PP Knife Disconnect Terminal Block

JUK 5-MTK P/P Rail Screw Clamp Terminal Block Low Voltage 800V/16A with Thin Structure

1. DESCRIPTION

The Knife disconnect terminal block are supplied with test socket screws for insertion of test plugs. Localize malfunctions quickly and easily, and perform off-load maintenance.

Made from anti Inflaming Nylon PA 66, Brass metal.

Long durable time.

Reliable and safe connection.

Thin structure saves space.

Low transition resistance,current load capacity can up to 16A.

Perfectly suitable for electrical machine control systems.

With universal foot which can be installed on Din Rail NS 35.

Convenient separation of circuits using lever-type disconnect knife, isolating plug or rotary contact.

User-friendly current measurement thanks to testing facility on both sides of the disconnect point.

Safe operation since the disconnect lever is latched into the end positions.

Clear identification of the disconnect point with color marking.

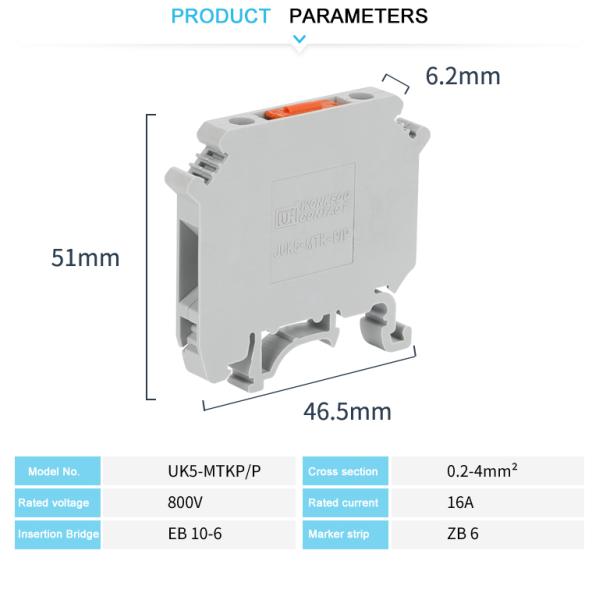

2. TECHNICAL PARAMETERS

Model Number	JUK 5-MTK PP, Knife disconnect terminal block
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	51/46.5/6.2
Connection method	Screw connection
Material	Anti inflaming Nylon PA66
Rated Voltage/Current	800V/16A
Cross section, solid/soft Cable	0.2-4 mm² / 0.2-4 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	12.79g/pc, 50PCS/BOX,1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
