JUK 5-HESILED Brass Metal Screw In Terminal Block , Insulated Terminal Block

Name: JUK 5HESILED Brass Metal Screw In Terminal Block Insulated Terminal Block
Brand: WONKEDQ
Price: 1 USD

Wholesale JUK 5-HESILED Brass Metal Screw In Terminal Block , Insulated Terminal Block from china suppliers

Brand Name : WONKEDQ

Model Number : JUK 5-HESILED

Certification : CE, RoHs, CQC,etc

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Type No. : JUK 5-HESILED

Connection type : Screw Connection

Housing material : Flame retard Nylon PA66

Brand names : WONKEDQ,others are available

Color : Grey, Black, other color can be customized

Rated voltage/current : 800V/6.3A

Contact Now

JUK 5 HESI LED Fuse Terminal Block

JUK 5-HESILED Brass Metal Screw In Terminal Block , Insulated Terminal Block Cost Effective

1. DESCRIPTION

WonkeDQ fuse terminal block lever is a safe way to insert and extract the fuse. Ideal for those cost critical applications where you are looking for a basic fuse terminal block that will save you money.

Cost-saving design.

Long durable time.

Stable and low contact resistances.

Easy mounting and dismounting from the terminal rail.

Perfectly suitable for electrical machine control systems.

Made from Inflaming retarding PA 66 with Brass metal.

It is a low cost alternative to the UK5 HESI supplied by .

Hinged -arm fuse blocks for better over current protection.

The terminal blocks mount directly on DIN rail.

A wide range of accessories: End covers, End Stoppers, Partition plates, marker trip, fixed bridge, Separating plates, etc.

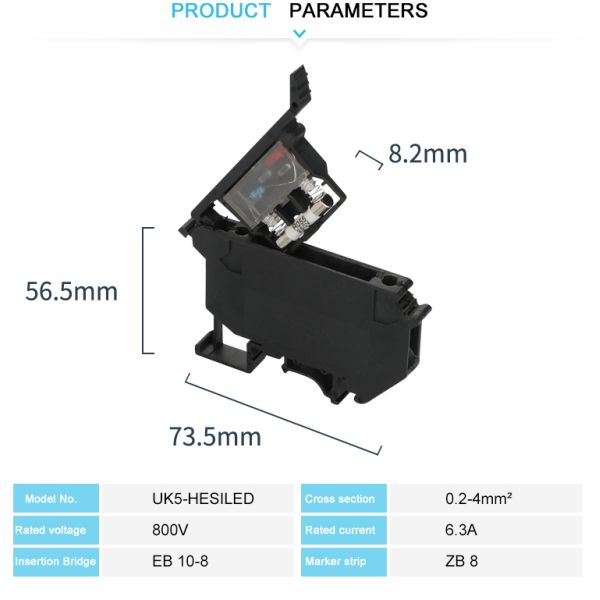

2.TECHNICALPARAMETERS

Model No.	JUK 5-HESILED, Fuse terminal block, black
Color	Black, other color can be customized
Length/Height/Wide (mm)	73.5/56.5/8.2
Connection method	Connection by screw tighten
Material	Nylon PA66
Rated Voltage/Current	800V/6.3A
Cross section, solid/soft Cable	0.2-4 mm² / 0.2-4 mm²
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized LOGO can be made.
Packing Detail	17.35g/pc, 50PCS/BOX,1000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
