JDK 4Q/35 Electrical Wire Terminal Blocks 4 Mm² Cross Section Light Weight
1. DESCRIPTION
The JSAK series terminal blocks with clamping yoke connection make planning easier and operational safety, providing a range of different requirements.
Made from engineering antiflaming nylon PA66 with brass screw metal.
Maintenance-free and vibration-proof screw connection
With universal foot which can be installed on Din Rail NS 35. The three different clip-on foot designs available for different types of Din Rails.
High safety.
Design in standard and compact body.
Can be clipped onto or removed from the terminal rail quickly and directly.
Stable and low contact resistances.
All types of accessories with high quality.
Ease of handling and a reliable electrical connection.
Reduce the installation costs and speed the wiring.
Strong contact force and excellent connection.
It can connect two conductors with ease, even large conductor cross sections are not a problem.
Electric potential distribution can use fixed bridges in the terminal center.
Large range of accessories: End cover, End Stopper, Partition plate, marker trip, fixed bridge, insertion bridge, etc.

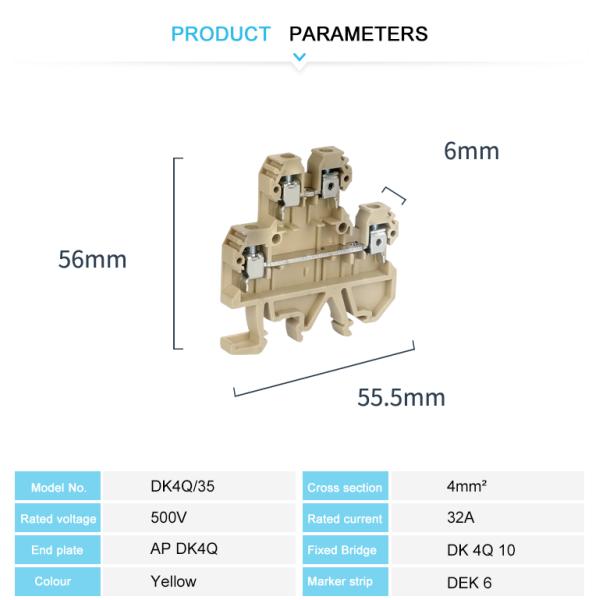

2.TECHNICAL PARAMETERS
| Model Number | JDK 4Q/35 |
| Color | Yellow, other color can be customized |
| Length/Height/Wide (mm) | 55.5/56/6 |
| Connection method | Screw connection |
| Material | Flaming retarding Nylon PA66 |
| Rated Voltage/Current | 500V/32A |
| Rated Cross section | 4 mm² |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 13.28g/pc, 50PCS/BOX,2000PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
